树脂胶流量测试系统由一台MRF-2.0E型胶流量测试机,一台MRF-P1取样冲模机和一台MRF-P2取样冲模机组成。设计紧凑,外形美观,符合美国IPC-TM-650标准中试验方法2.3.17各项要求,用于测量半固化片的树脂流动性测试。
The RF-2,OE Resin Flow Press is desighed to meet the requirements of IPC-TM-650 Method2.3.17for determing the resin flow Percent of prepreg as well as for "scaled flow testing" MRF-P1冲模机

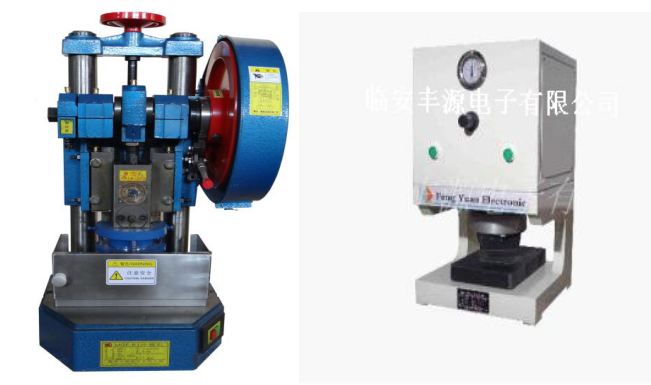

电动冲切类机床带Ф81.10mm直径冲模
能力(KN)-------------------------------------20
行程(㎜)-------------------------------------40
用电要求--------------------------------220V,50HZ,300W
模具直径(㎜/in)---------------------------81.10/3.192
机体尺寸(㎜):(W×D×H)-----------------320×480×540
MRF-P2冲模机
气动类机床带方形冲模
能力(KN)--------------------------------------30
行程(㎜)--------------------------------------40
用气要求----------------------------------------6 bar以上
模具尺寸(mm)-----------------------------102×102(±0.25)
机体尺寸(㎜):(W×D×H)-------------------370×370×540
机体重量(㎏)----------------------------------140
用电要求--------------------------------------- 220V,50HZ
RF-P1技术参数
型号Model |
RF-P1 |
能力Capacity |
10KN |
行程Stroke |
40mm |
模具尺寸Die diameter |
81.10mm/3.192" |
电源Power supply |
220V,50Hz,370W |
尺寸Size |
48×32×54cm |
重量Weight |
95kg |
|
RF-P2技术参数
型号Model |
RF-P2 |
能力Capacity |
40KN |
行程Stroke |
50mm |
模具尺寸Die size |
4"×4" |
电源Power supply |
220V,50Hz |
尺寸Size |
74×40×59cm |
重量Weight |
140kg |
供给压缩气Air supply |
6-8bar |
| |
